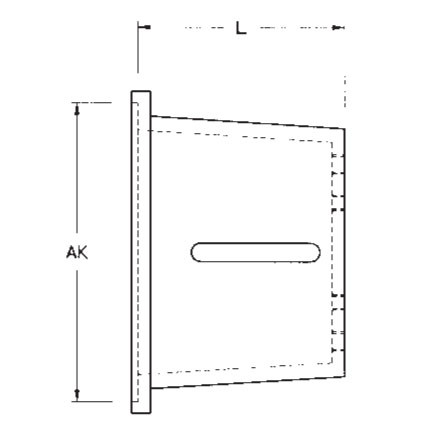

  • Dimensional Drawing for VM 25 Series Pump/Motor Adapters
Vertical or Horizontal Mounts for NEMA Motor Frames 182TC - 256TC
1 - 10 of 10 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Pump Flange Style

Dimension A

Maximum Coupling Diameter

Length

N/A VM 25 Series 2.001 Inch (in) Dimension A and 4.875 Inch (in) Length Pump/Motor Adapter N/A SAE AA 2 Bolt N/A 2.001 in N/A 4.125 in N/A 4.875 in
N/A VM 25 Series 1.782 Inch (in) Dimension A and 4.875 Inch (in) Length Pump/Motor Adapter N/A USA 4F17 4 Bolt N/A 1.782 in N/A 4.125 in N/A 4.875 in
N/A VM 25 Series 3.251 Inch (in) Dimension A and 4.875 Inch (in) Length Pump/Motor Adapter N/A SAE A 2 Bolt N/A 3.251 in N/A 4.125 in N/A 4.875 in
N/A VM 25 Series 4.001 Inch (in) Dimension A and 4.875 Inch (in) Length Pump/Motor Adapter N/A SAE B 2 Bolt N/A 4.001 in N/A 4.125 in N/A 4.875 in
N/A VM 25 Series 2.001 Inch (in) Dimension A and 5.875 Inch (in) Length Pump/Motor Adapter N/A SAE AA 2 Bolt N/A 2.001 in N/A 4.125 in N/A 5.875 in
N/A VM 25 Series 3.251 Inch (in) Dimension A and 5.875 Inch (in) Length Pump/Motor Adapter N/A SAE A 2Bolt N/A 3.251 in N/A 4.125 in N/A 5.875 in
N/A VM 25 Series 1.782 Inch (in) Dimension A and 5.875 Inch (in) Length Pump/Motor Adapter N/A USA 4F17 4 Bolt N/A 1.782 in N/A 4.125 in N/A 5.875 in
N/A VM 25 Series 4.001 Inch (in) Dimension A and 5.875 Inch (in) Length Pump/Motor Adapter N/A SAE B 2 Bolt N/A 4.001 in N/A 4.125 in N/A 5.875 in
N/A VM 25 Series 3.251 Inch (in) Dimension A and 6.875 Inch (in) Length Pump/Motor Adapter N/A SAE A 2 Bolt N/A 3.251 in N/A 4.125 in N/A 6.875 in
N/A VM 25 Series 4.001 Inch (in) Dimension A and 6.875 Inch (in) Length Pump/Motor Adapter N/A SAE B 2 Bolt N/A 4.001 in N/A 4.125 in N/A 6.875 in
