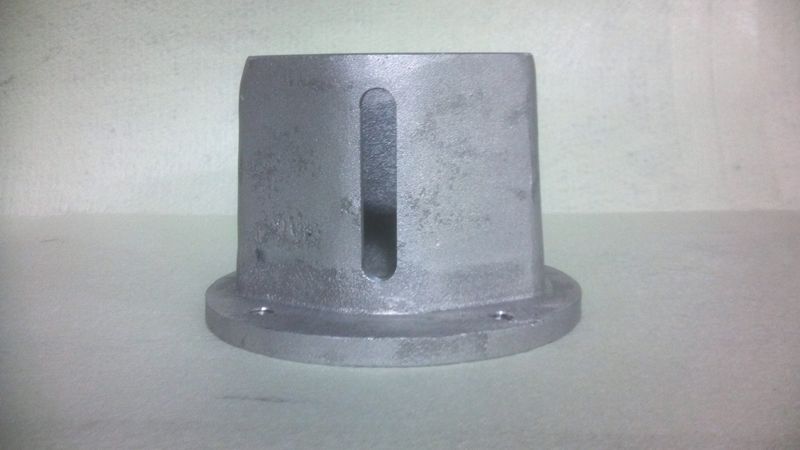

• VM Style Adapter

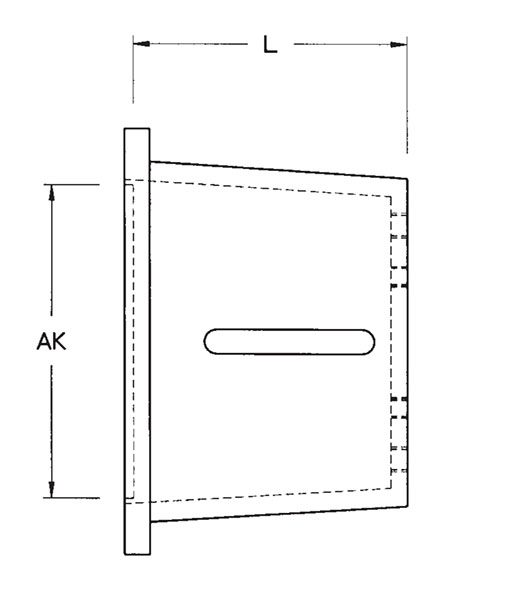

  • Dimensional Drawing for VM 14 Series Pump/Motor Adapters
Vertical or Horizontal Mounts for NEMA Motor Frames 56C - 145TC
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Pump Flange Style

Dimension A

Maximum Coupling Diameter

Length

N/A VM 14 Series 2.001 Inch (in) Dimension A Pump/Motor Adapter N/A SAE AA 2 Bolt N/A 2.001 in N/A 3.25 in N/A 4.25 in
N/A VM 14 Series 1.782 Inch (in) Dimension A Pump/Motor Adapter N/A USA 4F17 4 Bolt N/A 1.782 in N/A 3.25 in N/A 4.25 in
N/A VM 14 Series 3.251 Inch (in) Dimension A Pump/Motor Adapter N/A SAE A 2 Bolt N/A 3.251 in N/A 3.25 in N/A 4.25 in
N/A VM 14 Series 3.251 Inch (in) Dimension A Pump/Motor Adapter N/A SAE A 2 Bolt N/A 3.251 in N/A 3.25 in N/A 5.25 in
N/A VM 14 Series 2.125 Inch (in) Dimension A Pump/Motor Adapter N/A TUTHILL LE Series N/A 2.125 in N/A 3.25 in N/A 4.25 in
