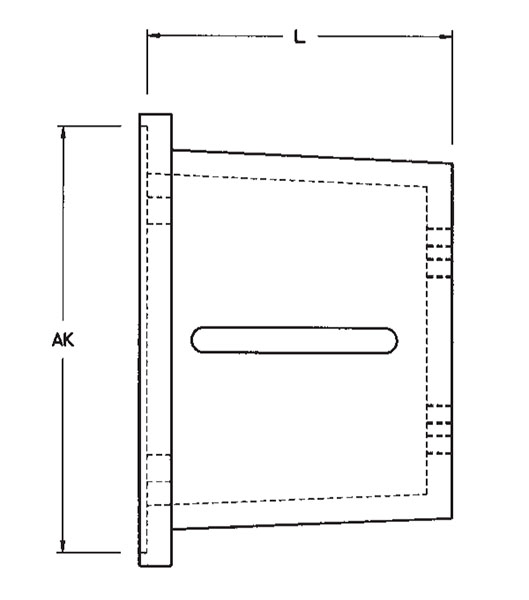

  • Dimensional Drawing for 40 Series Pump/Motor Adapters
Vertical or Horizontal Mounts for NEMA Motor Frames 324TC - 405TSC
1 - 8 of 8 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Pump Flange Style

Dimension A

Maximum Coupling Diameter

Length

N/A 40 Series 4.001 Inch (in) Dimension A and 6.875 Inch (in) Length Pump/Motor Adapter N/A SAE B 2 & 4 Bolt N/A 4.001 in N/A 6.000 in N/A 6.875 in
N/A 40 Series 5.001 Inch (in) Dimension A and 6.875 Inch (in) Length Pump/Motor Adapter N/A SAE C 2 & 4 Bolt N/A 5.001 in N/A 6.000 in N/A 6.875 in
N/A 40 Series 6.001 Inch (in) Dimension A and 6.875 Inch (in) Length Pump/Motor Adapter N/A SAE D 2 Bolt N/A 6.001 in N/A 6.000 in N/A 6.875 in
N/A 40 Series 4.001 Inch (in) Dimension A and 7.875 Inch (in) Length Pump/Motor Adapter N/A SAE B 2 & 4 Bolt N/A 4.001 in N/A 5.875 in N/A 7.875 in
N/A 40 Series 5.001 Inch (in) Dimension A and 7.875 Inch (in) Length Pump/Motor Adapter N/A SAE C 2 & 4 Bolt N/A 5.001 in N/A 5.875 in N/A 7.875 in
N/A 40 Series 6.001 Inch (in) Dimension A and 7.875 Inch (in) Length Pump/Motor Adapter N/A SAE D 2 Bolt N/A 6.001 in N/A 5.875 in N/A 7.875 in
N/A 40 Series 5.001 Inch (in) Dimension A and 8.875 Inch (in) Length Pump/Motor Adapter N/A SAE C 2 & 4 Bolt N/A 5.001 in N/A 5.750 in N/A 8.875 in
N/A 40 Series 6.001 Inch (in) Dimension A and 8.875 Inch (in) Length Pump/Motor Adapter N/A SAE D 2 & 4 Bolt N/A 6.001 in N/A 5.750 in N/A 8.875 in
