• Adapter Engine Mount

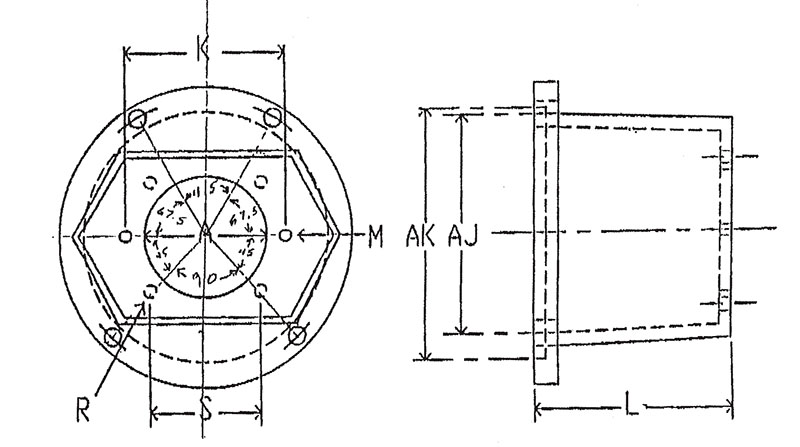

  • Dimensional Drawing for EM5 Series Pump/Engine Adapters
Engine mounting holes may be rotated 90º.

Metric pump mounts available.
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Pump Flange Style

Dimension A

Maximum Coupling Diameter

Length

N/A EM5 Series 3.251 Inch (in) Dimension A and 6 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE A 2 & 4 Bolt N/A 3.251 in N/A 4.500 in N/A 6 5/8 in
N/A EM5 Series 3.251 Inch (in) Dimension A and 7 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE A 2 & 4 Bolt N/A 3.251 in N/A 4.500 in N/A 7 5/8 in
N/A EM5 Series 3.251 Inch (in) Dimension A and 8 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE A 2 & 4 Bolt N/A 3.251 in N/A 4.500 in N/A 8 5/8 in
N/A EM5 Series 3.251 Inch (in) Dimension A and 9 3/8 Inch (in) Length Pump/Engine Adapter N/A SAE A 2 & 4 Bolt N/A 3.251 in N/A 4.500 in N/A 9 3/8 in
N/A EM5 Series 4.001 Inch (in) Dimension A and 6 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE B 2 & 4 Bolt N/A 4.001 in N/A 4.500 in N/A 6 5/8 in
N/A EM5 Series 4.001 Inch (in) Dimension A and 7 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE B 2 & 4 Bolt N/A 4.001 in N/A 4.500 in N/A 7 5/8 in
N/A EM5 Series 4.001 Inch (in) Dimension A and 8 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE B 2 & 4 Bolt N/A 4.001 in N/A 4.500 in N/A 8 5/8 in
N/A EM5 Series 4.001 Inch (in) Dimension A and 9 3/8 Inch (in) Length Pump/Engine Adapter N/A SAE B 2 & 4 Bolt N/A 4.001 in N/A 4.500 in N/A 9 3/8 in
N/A EM5 Series 5.001 Inch (in) Dimension A and 6 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE C 2 & 4 Bolt N/A 5.001 in N/A 4.500 in N/A 6 5/8 in
N/A EM5 Series 5.001 Inch (in) Dimension A and 7 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE C 2 & 4 Bolt N/A 5.001 in N/A 4.500 in N/A 7 5/8 in
N/A EM5 Series 5.001 Inch (in) Dimension A and 8 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE C 2 & 4 Bolt N/A 5.001 in N/A 4.500 in N/A 8 5/8 in
N/A EM5 Series 5.001 Inch (in) Dimension A and 9 3/8 Inch (in) Length Pump/Engine Adapter N/A SAE C 2 & 4 Bolt N/A 5.001 in N/A 4.500 in N/A 9 3/8 in
