• Adapter Engine Mount

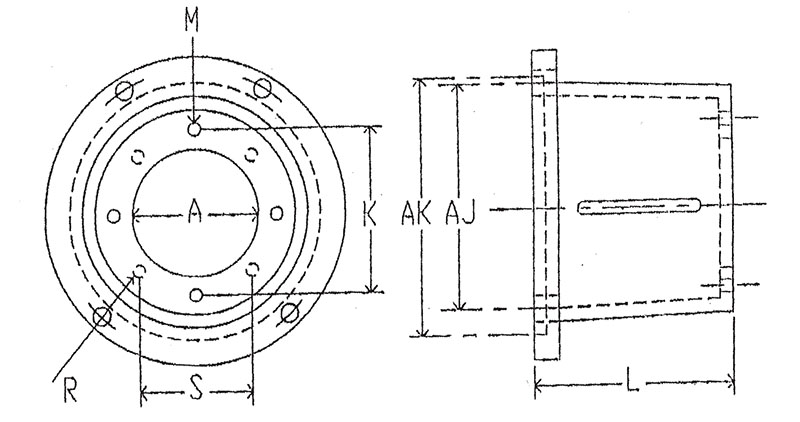

  • Dimensional Drawing for EM3 Series Pump/Engine Adapters
Metric pump mounts available.
1 - 24 of 24 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Pump Flange Style

Dimension A

Maximum Coupling Diameter

Length

N/A EM3 Series 2.001 Inch (in) Dimension A and 4 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE AA 2 Bolt N/A 2.001 in N/A 3.25 in N/A 4 5/8 in
N/A EM3 Series 2.001 Inch (in) Dimension A and 5 Inch (in) Length Pump/Engine Adapter N/A SAE AA 2 Bolt N/A 2.001 in N/A 3.25 in N/A 5 in
N/A EM3 Series 2.001 Inch (in) Dimension A and 5 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE AA 2 Bolt N/A 2.001 in N/A 3.25 in N/A 5 5/8 in
N/A EM3 Series 2.001 Inch (in) Dimension A and 6 Inch (in) Length Pump/Engine Adapter N/A SAE AA 2 Bolt N/A 2.001 in N/A 3.25 in N/A 6 in
N/A EM3 Series 2.001 Inch (in) Dimension A and 6 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE AA 2 Bolt N/A 2.001 in N/A 3.25 in N/A 6 5/8 in
N/A EM3 Series 2.001 Inch (in) Dimension A and 7 Inch (in) Length Pump/Engine Adapter N/A SAE AA 2 Bolt N/A 2.001 in N/A 3.25 in N/A 7 in
N/A EM3 Series 1.783 Inch (in) Dimension A and 4 5/8 Inch (in) Length Pump/Engine Adapter N/A USA 4F17 4 Bolt N/A 1.783 in N/A 3.25 in N/A 4 5/8 in
N/A EM3 Series 1.783 Inch (in) Dimension A and 5 Inch (in) Length Pump/Engine Adapter N/A USA 4F17 4 Bolt N/A 1.783 in N/A 3.25 in N/A 5 in
N/A EM3 Series 1.783 Inch (in) Dimension A and 5 5/8 Inch (in) Length Pump/Engine Adapter N/A USA 4F17 4 Bolt N/A 1.783 in N/A 3.25 in N/A 5 5/8 in
N/A EM3 Series 1.783 Inch (in) Dimension A and 6 Inch (in) Length Pump/Engine Adapter N/A USA 4F17 4 Bolt N/A 1.783 in N/A 3.25 in N/A 6 in
N/A EM3 Series 1.783 Inch (in) Dimension A and 6 5/8 Inch (in) Length Pump/Engine Adapter N/A USA 4F17 4 Bolt N/A 1.783 in N/A 3.25 in N/A 6 5/8 in
N/A EM3 Series 1.783 Inch (in) Dimension A and 7 Inch (in) Length Pump/Engine Adapter N/A USA 4F17 4 Bolt N/A 1.783 in N/A 3.25 in N/A 7 in
N/A EM3 Series 3.251 Inch (in) Dimension A and 4 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE A 2 Bolt N/A 3.251 in N/A 4.250 in N/A 4 5/8 in
N/A EM3 Series 3.251 Inch (in) Dimension A and 5 Inch (in) Length Pump/Engine Adapter N/A SAE A 2 Bolt N/A 3.251 in N/A 4.250 in N/A 5 in
N/A EM3 Series 3.251 Inch (in) Dimension A and 5 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE A 2 Bolt N/A 3.251 in N/A 4.250 in N/A 5 5/8 in
N/A EM3 Series 3.251 Inch (in) Dimension A and 6 Inch (in) Length Pump/Engine Adapter N/A SAE A 2 Bolt N/A 3.251 in N/A 4.250 in N/A 6 in
N/A EM3 Series 3.251 Inch (in) Dimension A and 6 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE A 2 Bolt N/A 3.251 in N/A 4.250 in N/A 6 5/8 in
N/A EM3 Series 3.251 Inch (in) Dimension A and 7 Inch (in) Length Pump/Engine Adapter N/A SAE A 2 Bolt N/A 3.251 in N/A 4.250 in N/A 7 in
N/A EM3 Series 4.001 Inch (in) Dimension A and 4 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE B 2 Bolt N/A 4.001 in N/A 4.125 in N/A 4 5/8 in
N/A EM3 Series 4.001 Inch (in) Dimension A and 5 Inch (in) Length Pump/Engine Adapter N/A SAE B 2 Bolt N/A 4.001 in N/A 4.125 in N/A 5 in
N/A EM3 Series 4.001 Inch (in) Dimension A and 5 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE B 2 Bolt N/A 4.001 in N/A 4.125 in N/A 5 5/8 in
N/A EM3 Series 4.001 Inch (in) Dimension A and 6 Inch (in) Length Pump/Engine Adapter N/A SAE B 2 Bolt N/A 4.001 in N/A 4.125 in N/A 6 in
N/A EM3 Series 4.001 Inch (in) Dimension A and 6 5/8 Inch (in) Length Pump/Engine Adapter N/A SAE B 2 Bolt N/A 4.001 in N/A 4.125 in N/A 6 5/8 in
N/A EM3 Series 4.001 Inch (in) Dimension A and 7 Inch (in) Length Pump/Engine Adapter N/A SAE B 2 Bolt N/A 4.001 in N/A 4.125 in N/A 7 in
