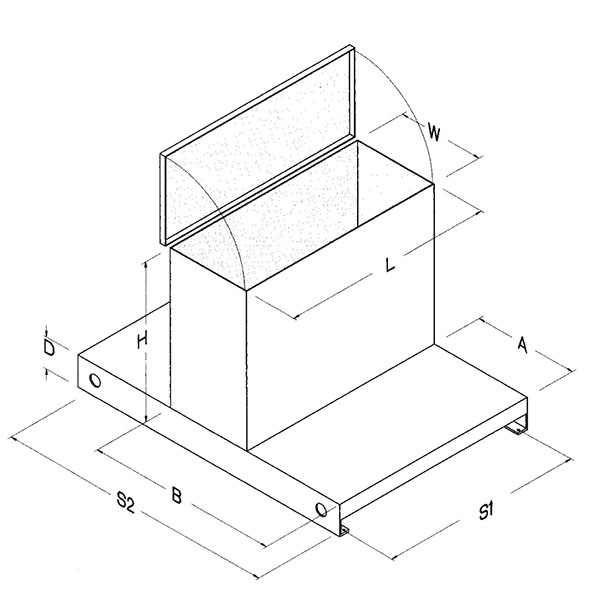

• Dimensional Drawing for T-Shaped Hydraulic Reservoirs
  • Hinged lid
  • Lifting holes
  • 9/16" Mounting holes
  • 3/4" drain
1 - 13 of 13 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Dimension A

Length

Width

Height

N/A 18 Inch (in) Length, 12 Inch (in) Width, and 17 Inch (in) Height T-Shaped Hydraulic Reservoir N/A 11 in N/A 18 in N/A 12 in N/A 17 in
N/A 30 Inch (in) Length, 12 Inch (in) Width, and 17 Inch (in) Height T-Shaped Hydraulic Reservoir N/A 17 in N/A 30 in N/A 12 in N/A 17 in
N/A 30 Inch (in) Length, 18 Inch (in) Width, and 17 Inch (in) Height T-Shaped Hydraulic Reservoir N/A 17 in N/A 30 in N/A 18 in N/A 17 in
N/A 36 Inch (in) Length, 18 Inch (in) Width, and 21 Inch (in) Height T-Shaped Hydraulic Reservoir N/A 17 in N/A 36 in N/A 18 in N/A 21 in
N/A 36 Inch (in) Length, 18 Inch (in) Width, and 31 Inch (in) Height T-Shaped Hydraulic Reservoir N/A 21 in N/A 36 in N/A 18 in N/A 31 in
N/A 42 Inch (in) Length, 18 Inch (in) Width, and 35 Inch (in) Height T-Shaped Hydraulic Reservoir N/A 23 in N/A 42 in N/A 18 in N/A 35 in
N/A 48 Inch (in) Length, 18 Inch (in) Width, and 35 Inch (in) Height T-Shaped Hydraulic Reservoir N/A 23 in N/A 48 in N/A 18 in N/A 35 in
N/A 48 Inch (in) Length, 24 Inch (in) Width, and 35 Inch (in) Height T-Shaped Hydraulic Reservoir N/A 23 in N/A 48 in N/A 24 in N/A 35 in
N/A 48 Inch (in) Length, 24 Inch (in) Width, and 41 Inch (in) Height T-Shaped Hydraulic Reservoir N/A 23 in N/A 48 in N/A 24 in N/A 41 in
N/A 60 Inch (in) Length, 24 Inch (in) Width, and 41 Inch (in) Height T-Shaped Hydraulic Reservoir N/A 23 in N/A 60 in N/A 24 in N/A 41 in
N/A 60 Inch (in) Length, 30 Inch (in) Width, and 53 Inch (in) Height T-Shaped Hydraulic Reservoir N/A 29 in N/A 60 in N/A 30 in N/A 53 in
N/A 72 Inch (in) Length, 30 Inch (in) Width, and 53 Inch (in) Height T-Shaped Hydraulic Reservoir N/A 29 in N/A 72 in N/A 30 in N/A 53 in
N/A 72 Inch (in) Length, 36 Inch (in) Width, and 59 Inch (in) Height T-Shaped Hydraulic Reservoir N/A 29 in N/A 72 in N/A 36 in N/A 59 in
