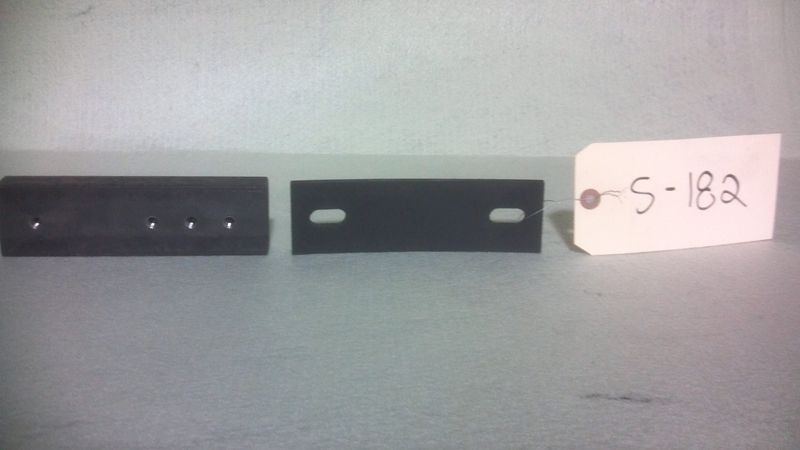

• Motor Bars and Shock Mount Pads

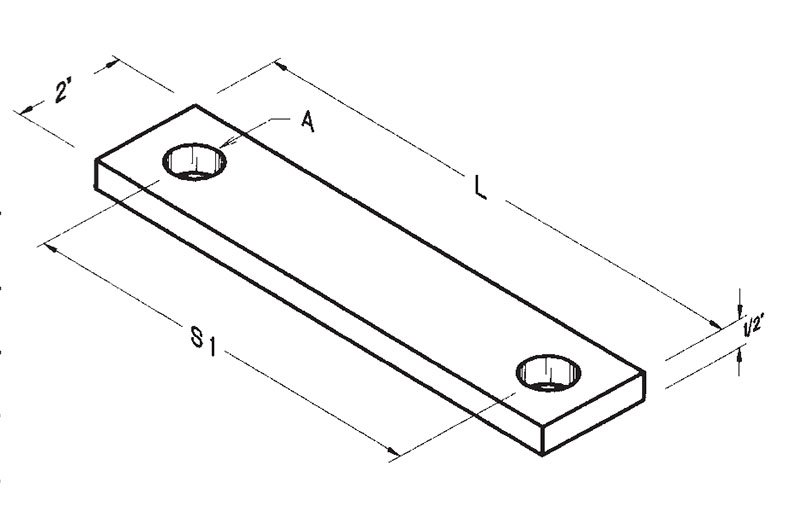

  • Dimensional Drawing for Shock Mount Pads
Shock mounting pads are an inexpensive and easily mounted vibration dampening device.
1 - 9 of 9 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Length

Dimension S1

Compatible Electric Motor Frames

Holes (A) Diameter

N/A 5 Inch (in) Length and 3 1/2 Inch (in) Dimension S1 Shock Mount Pad N/A 5 in N/A 3 1/2 in N/A 56T N/A 1/2 in
N/A 5 Inch (in) Length and 4 Inch (in) Dimension S1 Shock Mount Pad N/A 5 in N/A 4 in N/A 143T N/A 1/2 in
N/A 6 Inch (in) Length and 5 Inch (in) Dimension S1 Shock Mount Pad N/A 6 in N/A 5 in N/A 145T N/A 1/2 in
N/A 7 Inch (in) Length and 5 Inch (in) Dimension S1 Shock Mount Pad N/A 7 in N/A 5 in N/A 182T 184T 213T N/A
N/A 8 3/4 Inch (in) Length and 7 Inch (in) Dimension S1 Shock Mount Pad N/A 8 3/4 in N/A 7 in N/A 215T N/A 1/2 in
N/A 10 Inch (in) Length and 8 1/4 Inch (in) Dimension S1 Shock Mount Pad N/A 10 in N/A 8 1/4 in N/A 254T N/A 1/2 in
N/A 11 1/2 Inch (in) Length and 9 3/4 Inch (in) Dimension S1 Shock Mount Pad N/A 11 1/2 in N/A 9 3/4 in N/A 256T 284T N/A
N/A 12 1/2 Inch (in) Length and 10 3/4 Inch (in) Dimension S1 Shock Mount Pad N/A 12 1/2 in N/A 10 3/4 in N/A 286T 324T N/A
N/A 14 Inch (in) Length and 12 Inch (in) Dimension S1 Shock Mount Pad N/A 14 in N/A 12 in N/A 326T N/A 5/8 in
