• Motor Bars and Shock Mount Pads

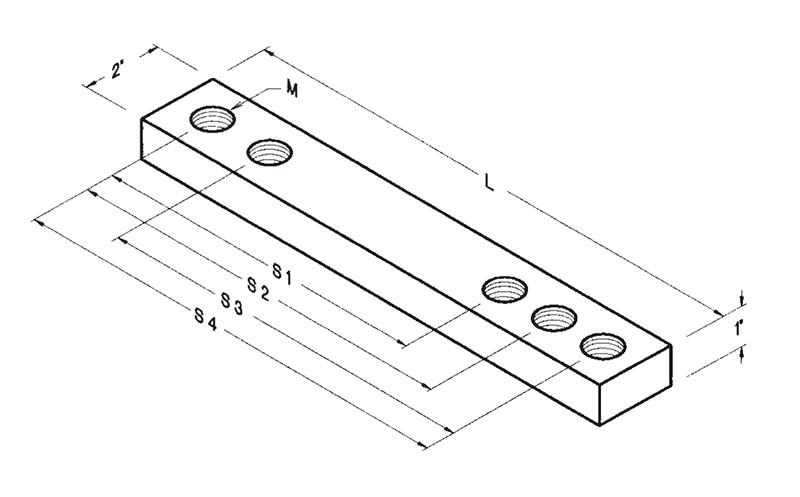

  • Dimensional Drawing for Motor Bars
  • Mechanical Designs of Virginia, Inc. motor bars are pre-drilled and tapped to match the footprint of standard NEMA electric motor frames.
  • Mechanical Designs of Virginia, Inc. motor bars raise the electric motor one inch off the reservoir to allow greater air flow, cooling the system more effectively.
  • Mechanical Designs of Virginia, Inc. motor bars provide power units with a clean and smooth machined look.
  • The light weight and compact size of Mechanical Designs of Virginia, Inc. motor bars make them easy to store, handle and install.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Length

Tapped Holes (M)

Motor Frames

Dimension S1

N/A 7 Inch (in) Length Motor Bar N/A 7 in N/A 5/16 in-18 N/A 143T 145T 56T N/A 3 in
N/A 9 Inch (in) Length Motor Bar N/A 9 in N/A 3/8 in-16 N/A 182T 184T 213T 215T N/A 4 1/2 in
N/A 13 Inch (in) Length Motor Bar N/A 13 in N/A 1/2 in-13 N/A 254T 256T 284T 286T N/A 8 1/4 in
N/A 14 Inch (in) Length Motor Bar N/A 14 in N/A 5/8 in-11 N/A 324T 326T N/A 10 1/2 in
