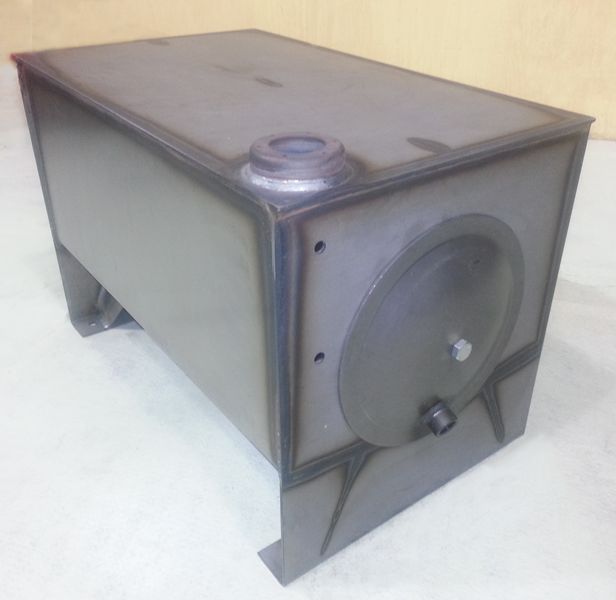

• JIC Hydraulic Reservoirs

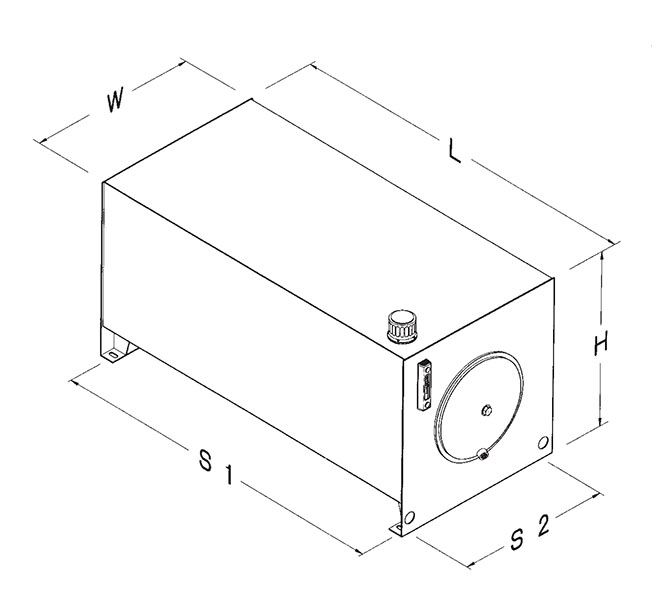

  • Dimensional Drawing for JIC Hydraulic Reservoirs
  • Filter/Breather
  • Fluid Temperature/Level Indicator
  • Complete clean-out covers mounted
  • 3/4" NPT Drain Plug
1 - 15 of 15 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Item Name

Length

Width

Height

Clean-Out Hole Diameter

N/A 22 Inch (in) Length, 18 Inch (in) Width, and 20 Inch (in) Height JIC Hydraulic Reservoir N/A 22 in N/A 18 in N/A 20 in N/A 10 mm
N/A 26 Inch (in) Length, 18 Inch (in) Width, and 20 Inch (in) Height JIC Hydraulic Reservoir N/A 26 in N/A 18 in N/A 20 in N/A 10 mm
N/A 30 Inch (in) Length, 18 Inch (in) Width, and 20 Inch (in) Height JIC Hydraulic Reservoir N/A 30 in N/A 18 in N/A 20 in N/A 10 mm
N/A 36 Inch (in) Length, 24 Inch (in) Width, and 20 Inch (in) Height JIC Hydraulic Reservoir N/A 36 in N/A 24 in N/A 20 in N/A 12 mm
N/A 36 Inch (in) Length, 24 Inch (in) Width, and 22 Inch (in) Height JIC Hydraulic Reservoir N/A 36 in N/A 24 in N/A 22 in N/A 12 mm
N/A 36 Inch (in) Length, 24 Inch (in) Width, and 23 Inch (in) Height JIC Hydraulic Reservoir N/A 36 in N/A 24 in N/A 23 in N/A 12 mm
N/A 48 Inch (in) Length, 27 Inch (in) Width, and 21 Inch (in) Height JIC Hydraulic Reservoir N/A 48 in N/A 27 in N/A 21 in N/A 12 mm
N/A 60 Inch (in) Length, 27 Inch (in) Width, and 21 1/2 Inch (in) Height JIC Hydraulic Reservoir N/A 60 in N/A 27 in N/A 21 1/2 in N/A 12 mm
N/A 60 Inch (in) Length, 27 Inch (in) Width, and 23 1/2 Inch (in) Height JIC Hydraulic Reservoir N/A 60 in N/A 27 in N/A 23 1/2 in N/A 12 mm
N/A 60 Inch (in) Length, 30 Inch (in) Width, and 26 Inch (in) Height JIC Hydraulic Reservoir N/A 60 in N/A 30 in N/A 26 in N/A 16 mm
N/A 60 Inch (in) Length, 30 Inch (in) Width, and 31 Inch (in) Height JIC Hydraulic Reservoir N/A 60 in N/A 30 in N/A 31 in N/A 16 mm
N/A 72 Inch (in) Length, 36 Inch (in) Width, and 29 Inch (in) Height JIC Hydraulic Reservoir N/A 72 in N/A 36 in N/A 29 in N/A 16 mm
N/A 72 Inch (in) Length, 36 Inch (in) Width, and 38 Inch (in) Height JIC Hydraulic Reservoir N/A 72 in N/A 36 in N/A 38 in N/A 16 mm
N/A 72 Inch (in) Length, 48 Inch (in) Width, and 38 Inch (in) Height JIC Hydraulic Reservoir N/A 72 in N/A 48 in N/A 38 in N/A 16 mm
N/A 72 Inch (in) Length, 48 Inch (in) Width, and 43 Inch (in) Height JIC Hydraulic Reservoir N/A 72 in N/A 48 in N/A 43 in N/A 16 mm
