Vertical or Horizontal Mounts for NEMA Motor Frames 182TC - 256TC
Unit of Measure
Specifications
Brands |
N/A Hesco of Virginia |
Pump Flange Style |
N/A SAE C 2 & 4 Bolt |

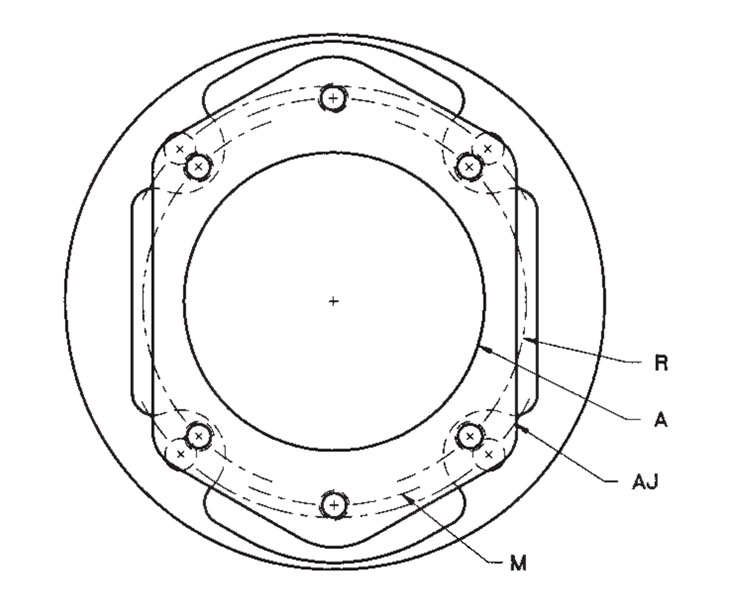

Dimension A |
N/A 5.001 in |
Maximum Coupling Diameter |
N/A 4.875 in |
Length |
N/A 6.875 in |
Tapped Holes (M) |
N/A 2 at 5/8-11 on 7.125 in B.C. |
Tapped Holes (R) |
N/A 4 at 1/2-13 on 6.375 in B.C. |
Dimension AJ |
N/A 4 at 17/32 on 7.25 in B.C. |
Dimension AK |
N/A 8.502 in |
Weight |
N/A 9 lb |
